LUXELL相機

請求報價

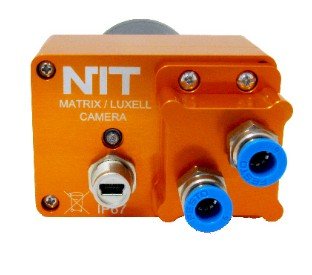

LUXELL CAMERA-S是工業版，其線性掃描陣列LUXELL-CORE-S的IP67級外殼具有FPA 256像素。它每秒最多可獲取300條線路，具有USB 2.0接口和工業連接器。具有f / 35毫米和CS接口光學接口的鏡頭也達到IP67等級。該相機包括LUXELL SOFTWARE SUITE和用于LabVIEW的開發套件。該系統是即插即用的系統，對于開發負擔得起的解決方案并將其集成到生產線中是最佳的。

廠家

產品分類

熱門產品

激光器與光器件

光譜影像設備及附件

CCD/CMOS相機

LUXELL相機

特征：

FPA解析度：256像素（像素：600 um x 60 um）
讀出方法：卷簾門（xy尋址）
讀出通道：2個A / D通道
接口：具有工業連接器的USB 2.0
金屬外殼：IP67等級
光學：f = 35毫米，F＃1.1，CS安裝，IP67

可下載文件：LUXELL_SERIES

應用領域：

工業過程控制（掃描）
玻璃制造業
氣體和火焰檢測

技術指標：

DETECTOR	VPD PbSe LUXELL FPA 256, uncooled performance at room temperature
FPA FORMAT	Lineal array, 1×256 pixels
PIXEL SIZE	600 um (H) x 60 um (W)
SPECTRAL RANGE OF DETECTION	MWIR (1.0 to 5.0 microns)
PEAK WAVELENGTH OF DETECTION	3.7 microns
OPTIMUM TEMPERATURE DETECTION RANGE	>100 oC
INTEGRATION TIME (US)	Configurable: 4 – 20 microseconds
LINE RATE	300 lines per second (max)
READOUT METHOD	Rolling shutter, 2 ADC channels
COMMUNICATION INTERFACE	USB 2.0 High-Speed
DATA COMMUNICATION	14 bit
TRIGGER	No
START-UP TIME	< 10 seg
POWER	1 W (5 VDC, 0.2 A) – USB powered
EXTERNAL HOUSING	Metal housing with CS-mount optics interface, industrial USB 2.0 connector (M12x1) and screw holes for tripod Includes water block for thermal stabilization of FPA with water or air IP67-rated
OPTICS	Silicon lens with AR coating, f=35 mm, F#1.1 FoV: 25o (h) x 1o (v), manual focus, CS-mount optics interface (dettachable) FoR (@1m) = 440 mm (h) x 17 mm (v)
CAMERA-S SIZE WITH HOUSING, WATER BLOCK AND LENS, MM)	70 (L) x 131.5 (W) x 50 (H)
OTHER INFORMATION	Mechanical shutter for 1-pt offset
SOFTWARE	NIT SOFTWARE SUITE (Acquisition and visualization SW), LabVIEW SDK
THE SYSTEM INCLUDES	1x LUXELL CAMERA-S with lens f=35 mm 1x USB cable with industrial connector
